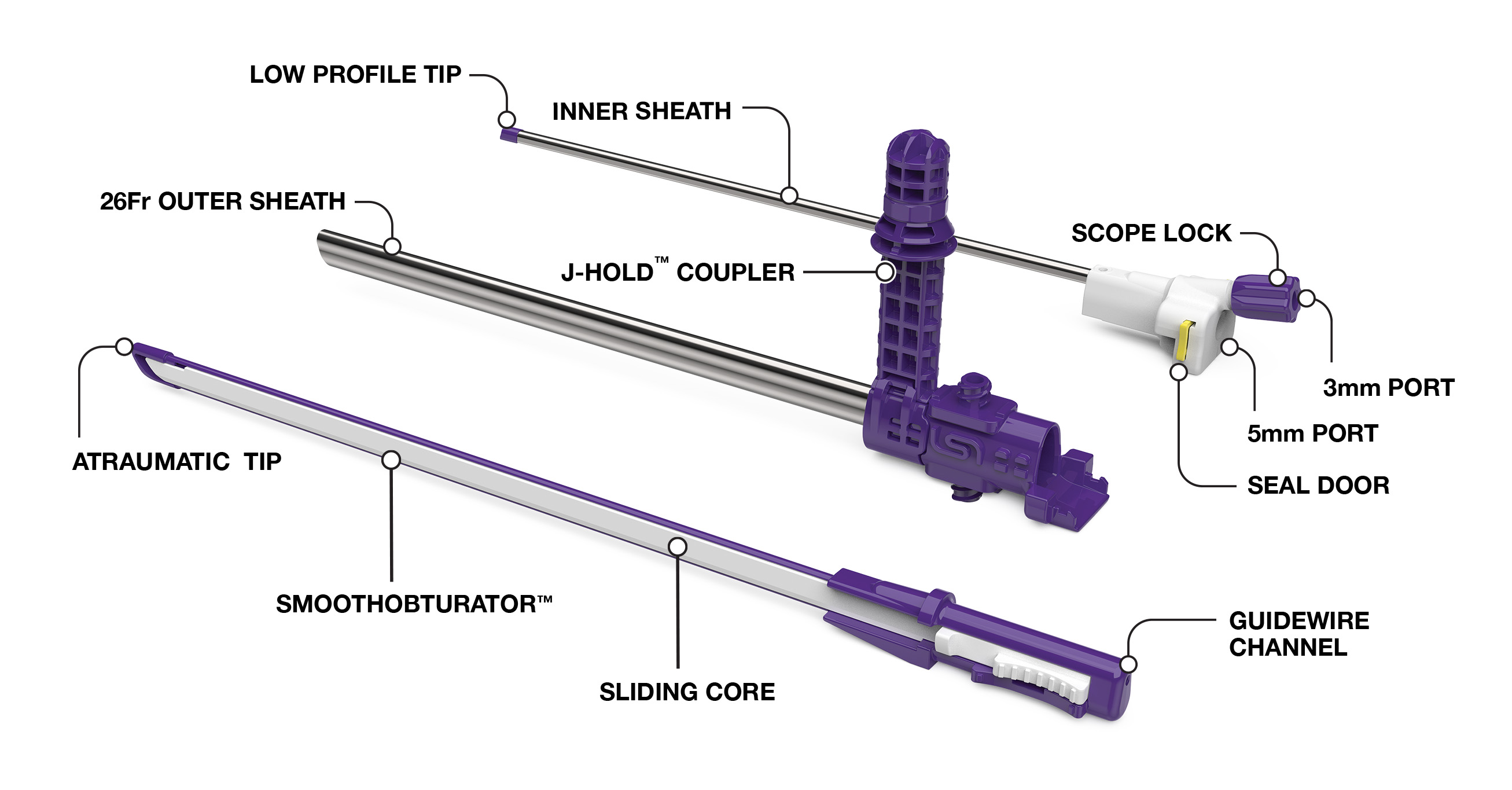

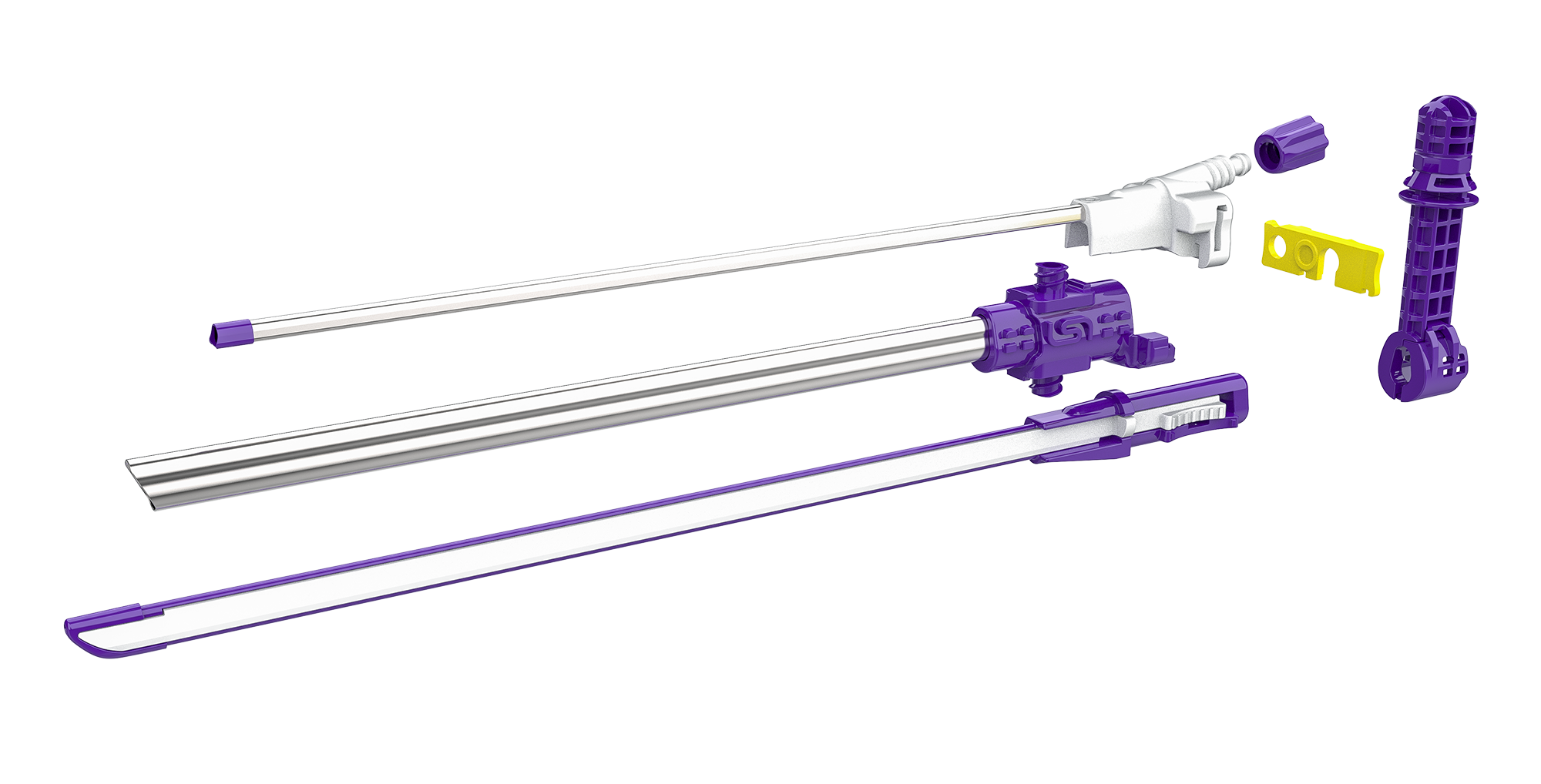

The JNW μITUS™ Instrument Guide is a dual-lumen multipurpose cannula with a removable inner sheath that allows multiple tools to be used simultaneously through a small opening.

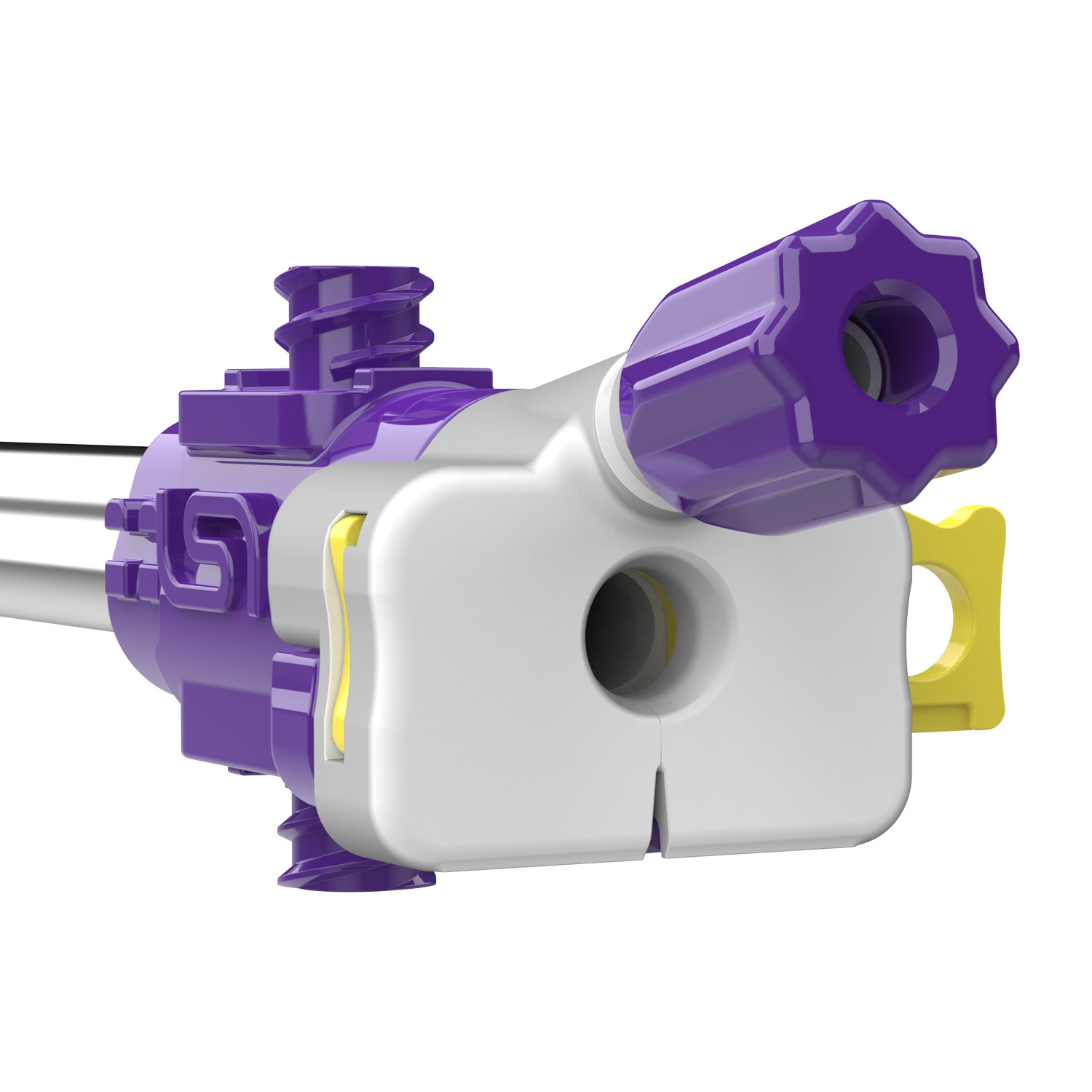

SCOPE LOCK
The scope lock can be tightened to maintain both axial and rotation position of the endoscope within the JNW μITUS™

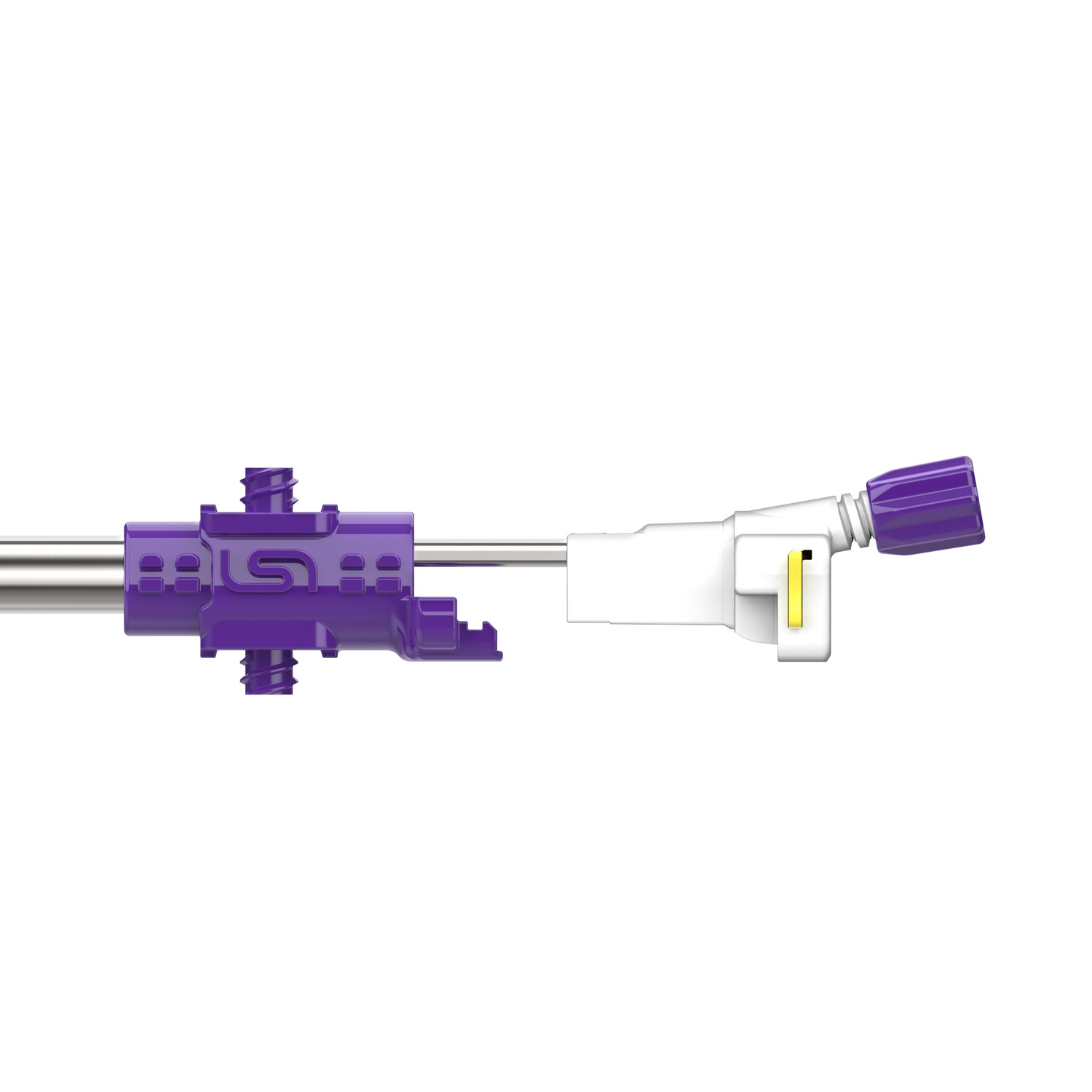

REMOVABLE INNER SHEATH
The Inner Sheath can be removed from the Outer Sheath to create a larger working channel if needed

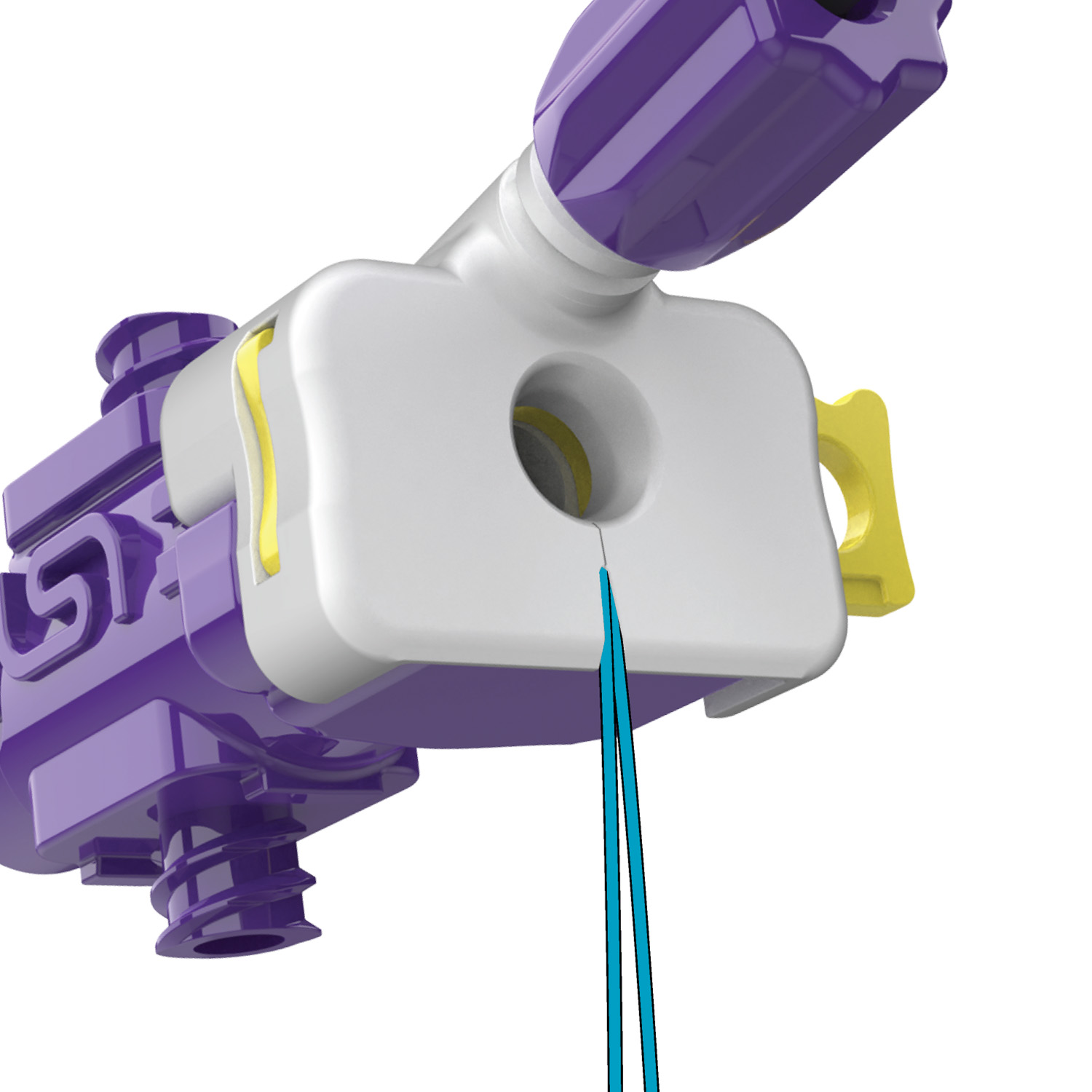

SUTURE NOTCH
The suture notch allows surgical suture to be passed between the Sliding Seal and the Outer Sheath while inserting and removing the Inner Sheath

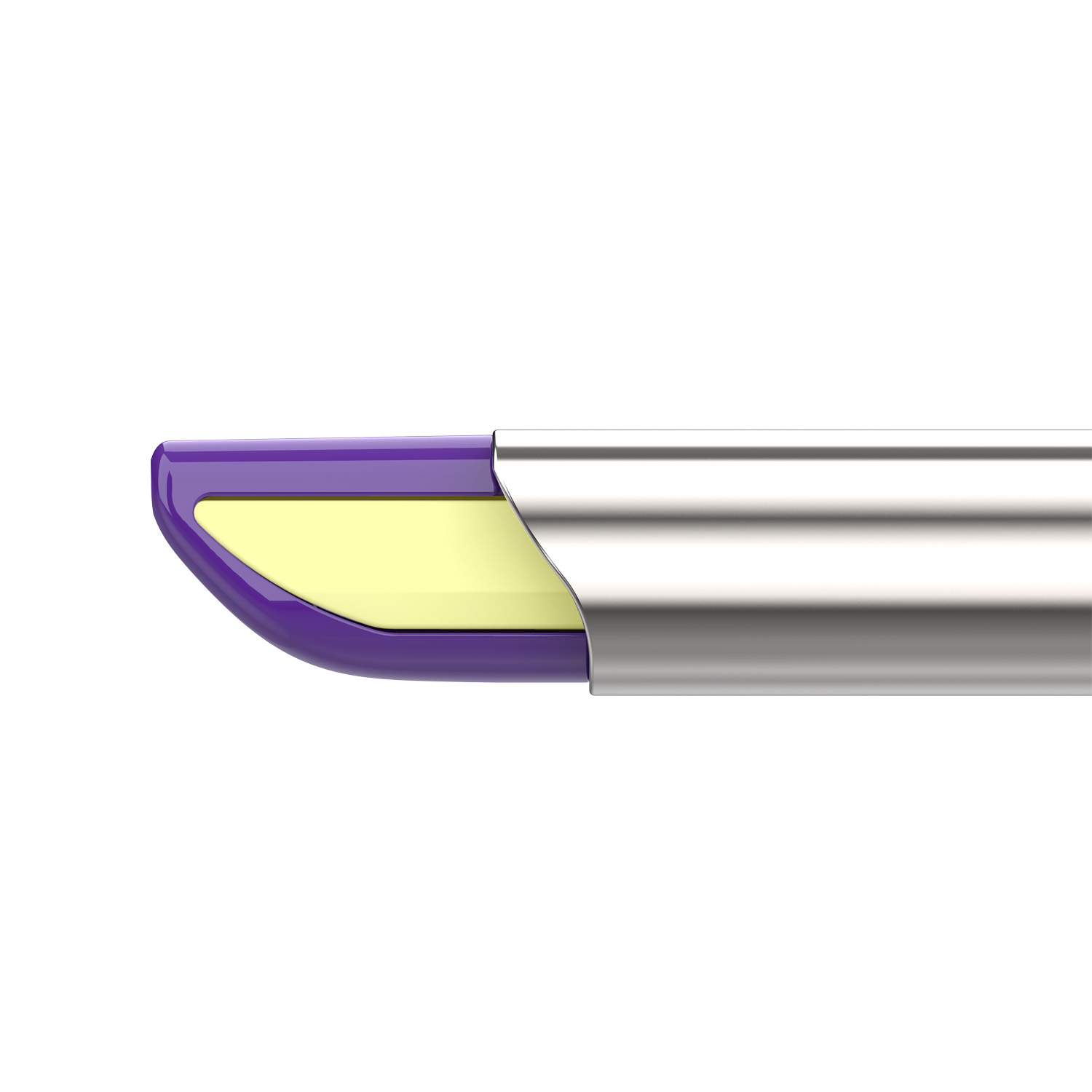

SMOOTHOBTURATOR™
Enables smooth passage of the JNW μITUS™ to the targeted site

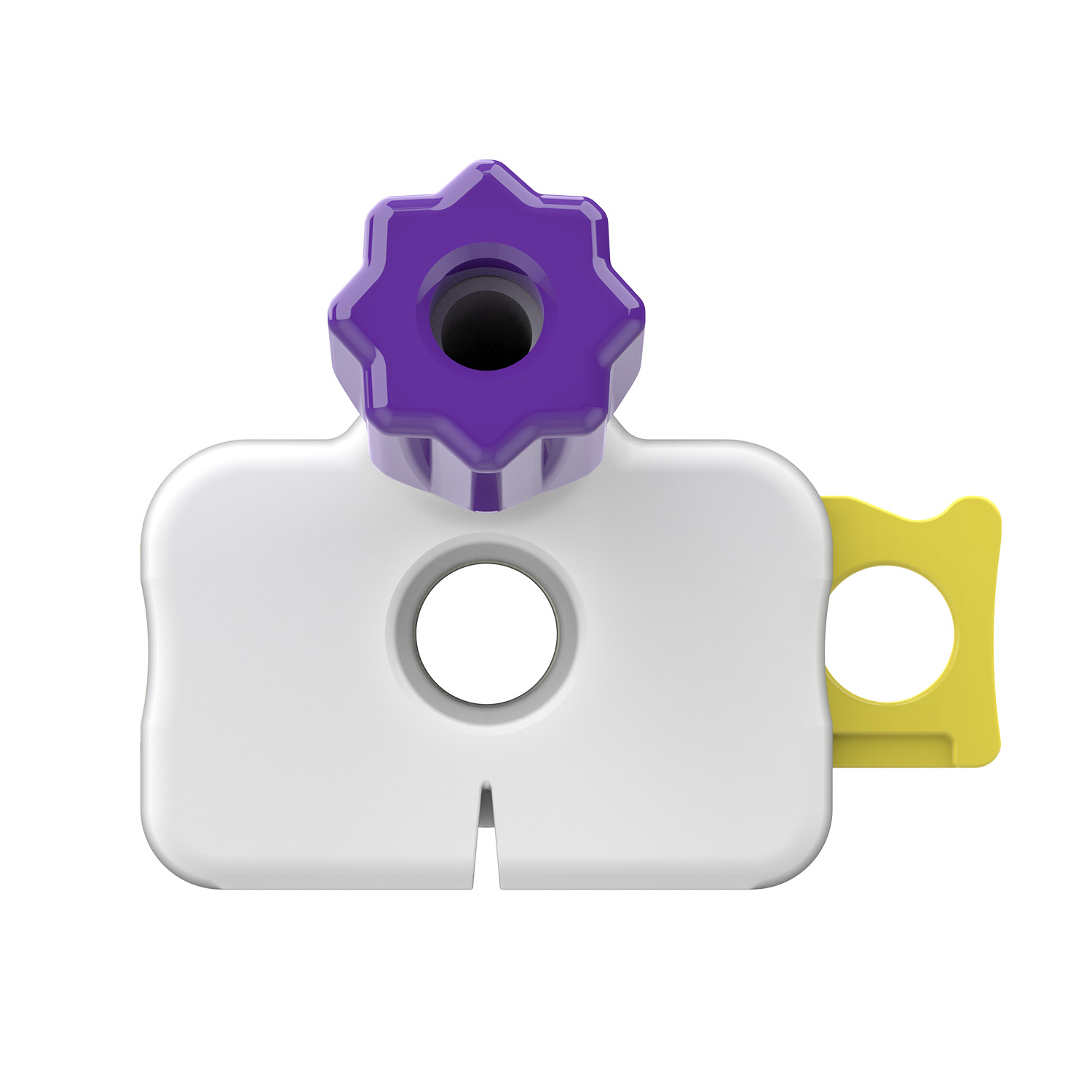

ADJUSTABLE FLOW
The Seal Door allows for continuous flow during instrument exchanges, and prevents the inner sheath from decoupling from the Outer Sheath during use
